Introduction to Log Shipping Basics and Step by Step Demo and Techniques in SQL Server

Log Shipping in SQL Server is a very old and popular feature most widely used to mostly enable disaster-recovery solution for the application databases. SQL Server Log shipping allows us to automatically send transaction log backups from a primary database on a primary server instance to one or more secondary databases on separate secondary server instances. The transaction log backups are applied to each of the secondary databases individually. An optional third server instance, known as the monitor server, records the history and status of backup and restore operations and, optionally, raises alerts if these operations fail to occur as scheduled.

What editions of SQL Server is log shipping available in?
  • 2012 – Enterprise, Business Intelligence, Standard, and Web
  • 2008 R2 – Data center, Enterprise, Standard, Web, and Work group
  • 2008 – Enterprise, Standard, Web, and Work group
  • 2005 – Enterprise, Standard, and Work group

Log shipping is a Database level not server level if you add database users it will reflect on secondary but not login could not reflect due to server level limitation to reflect login we need s p_help_rev_login by manual work

Log shipping supports both Recovery model Full and Bulk logged not simple recovery model

Log shipping is for Disaster Recovery but Automatic Fail over is not possible We have to do manual fail over

Log shipping is support one or more secondary

Log shipping you cant' able to configure it with in same server act as primary/secondary

Log shipping needs both server should be same version then only read-only option enable other wise(i.e different version SQL 2008 to SQL 2012) it gives error as database upgrade is needed then you can able to setup secondary database as with no recovery only



SQL Server log shipping is a technique which involves two or more SQL Server instances and copying of a transaction log file from one SQL Server instance to another. The process of transferring the transaction log files and restoring is automated across the SQL Servers. As the process result there are two copies of the data on two separate locations

A log shipping session involves the following steps:
  • Backing up the transaction log file on the primary SQL Server instance
  • Copying the transaction log backup file across the network to one or more secondary SQL Server instances
  • Restoring the transaction log backup file on the secondary SQL Server instances

Implementation examples

One of the common log shipping scenarios is the environment with two servers (SQL Server-1 – primary and SQL Server-2 – secondary), two SQL Server instances (SQL Instance-1 and SQL Instance-2), and one SQL Server database named SQL DB-1 with log shipping running on it

Another common configuration is the environment with three (or more) servers (SQL Server-1 – primary, SQL Server-2 – secondary, and SQL Server-3 – secondary), three SQL Server instances (SQL Instance-1, SQL Instance-2, and SQL Instance-3), and one SQL Server database named SQL DB-1 with log shipping running on it

Operating modes

There are two available modes and they are related to the state in which the secondary, log shipped, SQL Server database will be:
  • Standby mode – the database is available for querying and users can access it, but in read-only mode
    • The database is not available only while the restore process is running
      • Users can be forced to disconnect when the restore job commence
      • The restore job can be delayed until all users disconnect themselves
  • Restore mode – the database is not accessible

Advantages and disadvantages of using SQL Server log shipping

SQL Server log shipping is primarily used as a disaster recovery solution. Using SQL Server log shipping has multiple benefits: it’s reliable and tested in details, it’s relatively easy to set up and maintain, there is a possibility for fail over between SQL Servers, data can be copied on more than one location etc.
Log shipping can be combined with other disaster recovery options such as Always On Availability Groups, database mirroring, and database replication. Also, SQL Server log shipping has low cost in human and server resources
The main disadvantages in the SQL Server log shipping technique are: need to manage all the databases separately, there isn’t possibility for an automatic fail over, and secondary database isn’t fully readable while the restore process is running

Monitoring Log Shipping

After you have configured log shipping, you can monitor information about the status of all the log shipping servers. The history and status of log shipping operations are always saved locally by the log shipping jobs. The history and status of the backup operation are stored at the primary server, and the history and status of the copy and restore operations are stored at the secondary server. If you have implemented a remote monitor server, this information is also stored on the monitor server.
You can configure alerts that will fire if log shipping operations fail to occur as scheduled. Errors are raised by an alert job that watches the status of the backup and restore operations. You can define alerts that notify an operator when these errors are raised. If a monitor server is configured, one alert job runs on the monitor server that raises errors for all operations in the log shipping configuration. If a monitor server is not specified, an alert job runs on the primary server instance, which monitors the backup operation. If a monitor server is not specified, an alert job also runs on each secondary server instance to monitor the local copy and restore operations.
Note:
To monitor a log shipping configuration, you must add the monitor server when you enable log shipping. If you add a monitor server later, you must remove the log shipping configuration and then replace it with a new configuration that includes a monitor server. For more information, Furthermore, after the monitor server has been configured, it cannot be changed without removing log shipping first.

Here We can see the Source Server(Primary Server) see the basic tables and logins



Here We can see the Destination Server(Secondary Server)ms190224.note(en-US,SQL.90).gif

also see folder must be Shared and Read/Write permission

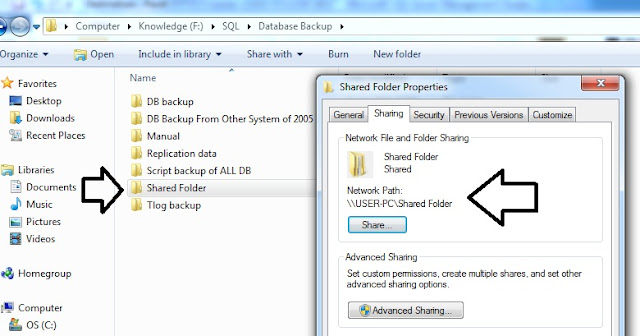

Just Right Click Folder and choose Properties and choose Sharing Tab to select this as below



Also see the Shared folder local path as show below





Also see the Shared folder network path as show below




Step 1:
Now We need to take Full Backup of Source (Primary server ) as see below



just click Remove button remove existing backup default setting


Just now Click Add button


Just Click Overwrite option and tick verify backup when finished you can also Compress backup (if backup size is large optional)

After click submit button we can backup has been Succeeded message as see below


 Kindly verify backed up location as see below

Now we can see the shared folder structure as see below

Inside Backup location as see below Backup_database_name


As same as Copy folder structure as see below

Now we need to copy and paste it into Backup folder of shared network path as see below



Now we logged into Destination folder and Click Restore Database


 Now We need to select backup file from Network Backup Shared Folder as see below

 if it is new db then don't need to select/tick  relocate all files to folder option


but if it is already some same name of database exist in folder then it will through error as see below


it is due to more db name have same name of db exists on that folder as see below

 so to avoid this we should select/ticket Relocate all files to folder as see below but we need to select  elipse ... -->option choose / type new path location

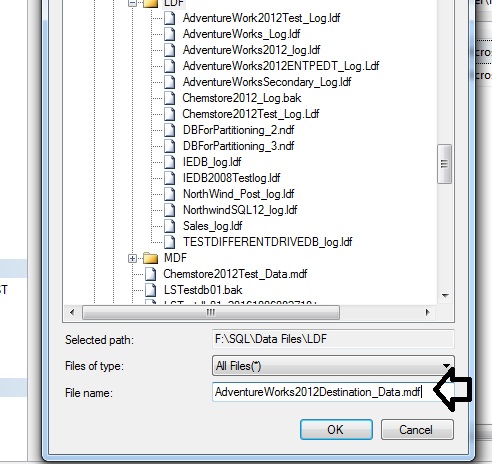

Now we type new path as see below

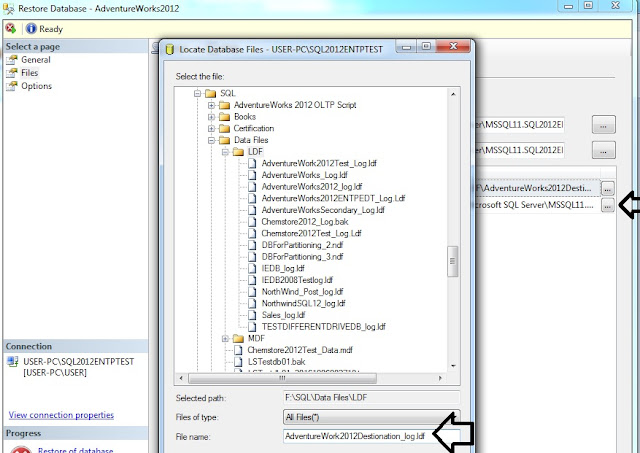

Now we need to specify/type new path location  as see below






Now we go to Options Tab and select Restore with Standby option as see below

Restore with recovery ----------DB ready to use cant add any more files transaction log,backup

Restore with No_recovery--DB still allows more files to add like transaction log,diff but user can't access db

Restore with stand by--------DB can allows read only but only restore transaction log can't restore Backup file


When we select yes option DB Restore successfully as see below


Now you can see in secondary server of restored db with stand by option as see below


Now we are ready to configure log shipping

Step 2:
Now we go to Primary Server and go to Primary server database and right click and choose properties as see below



 see below pic will come then kindly choose Transaction log shipping


Now we click check box of Enable this as primary databases as see below now click Backup Settings option


 Now we go to shared folder and verify and ensure it should be shared folder or kindly make it as

Shared folder as right click folder and choose shared from share tab

Note:
NT Service & NT network service & NT MS SQL AGENT & everyone & MS SQL Server$instance have  all read/write permission or not

kindly copy it network path as see below


 After clicked Backup setting below picture appears
Note:
Network path is compulsory


you can go to network path as RUN-->network folder as ensure whether it is working or not


After that click ADD Button to configure Secondary as see below


connect option button to choose Secondary server and choose right database and go through three tabs as see below

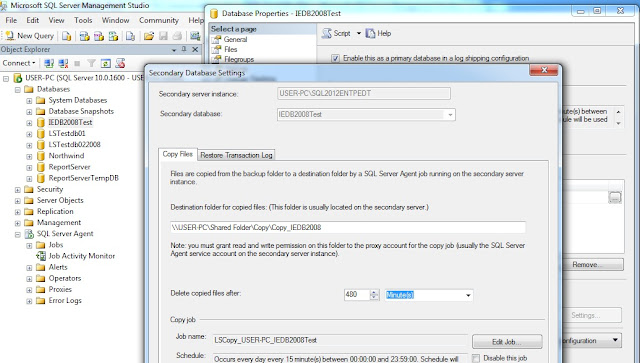

we can give local path or network path both should work in copy tab


we can also give network path as see below


 Now we can go for third tab as restore Transaction log as see below


After click submit as see below

 Now we can go for SQL Agent then expand jobs tab and see job list as see below


Now right click and start job as see below


see job succeeded message as see below


 Now refresh in server name with as see below



Now go with report as see below


Now see the report as see below



Now we logged into Secondary server and Run job as same method


or we can go with job activity monitor click Filter and type name and choose apply filter as see below


now we need to run both copy and restore job as see below


Kindly see the job succeeded see below


Now we run restore job


 restore job succeeded message as see below

 Now we go for secondary and refresh server as see below method 2 to for refresh server


Now we go with reports of secondary server

see the report of secondary as see below



we can also see this report using below T-SQL(we need to run this query in secondary server)


SELECT secondary_server,
secondary_database,
primary_server,
primary_database,
last_copied_file,
last_copied_date,
last_restored_file,
last_restored_date
from [ms db].[d b o].log_shipping_monitor_secondary


Now we can see backup details in primary server as see below

we need to run in primary server

-- Assign the database name to variable below
DECLARE @db_name VAR CHAR(100)
SELECT @db_name = 'database name'
-- query
SELECT TOP (30) s.database_name
,m.physical_device_name
,CAST(CAST(s.backup_size / 1000000 AS INT) AS VAR CHAR(14)) + ' ' + 'MB' AS b k Size
,CAST(DATE DIFF(second, s.backup_start_date, s.backup_finish_date) AS VAR CHAR(4)) + ' ' + 'Seconds' Time Taken
,s.backup_start_date
,CAST(s.first_l s n AS VAR CHAR(50)) AS first_l s n
,CAST(s.last_l s n AS VAR CHAR(50)) AS last_l s n
,CASE s.[type] WHEN 'D'
THEN 'Full'
WHEN 'I'
THEN 'Differential'
WHEN 'L'
THEN 'Transaction Log'
END AS [Backup Type]
,s.server_name
,s.recovery_model
FROM ms db.d b o.backupset s
INNER JOIN ms db.dbo.backupmediafamily m ON s.media_set_id = m.media_set_id
WHERE s.database_name = @db_name
ORDER BY backup_start_date DESC
,backup_finish_date

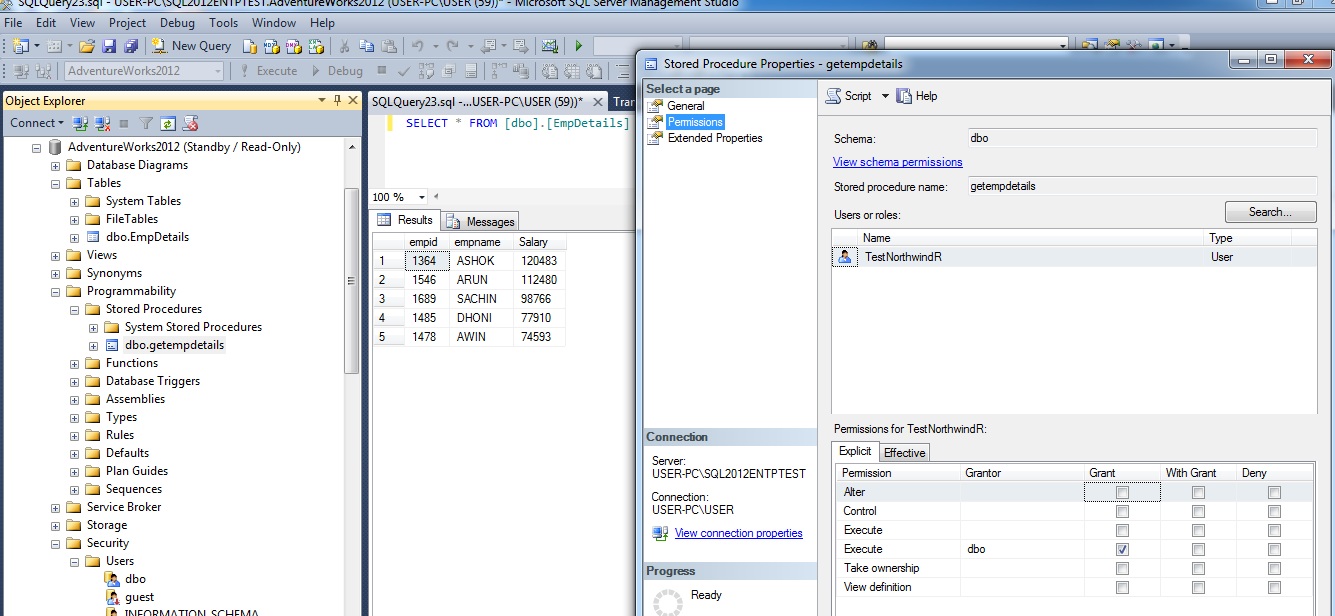

After each  D M L operation next job runs it will reflect it on secondary from primary

logins are reflected to secondary but we need to solve it orphan users on secondary



So we need to use sp_helprevlogin script

USE master
GO
IF OBJECT_ID ('sp_hexadecimal') IS NOT NULL
  DROP PROCEDURE sp_hexadecimal
GO
CREATE PROCEDURE sp_hexadecimal
    @binvalue varbinary(256),
    @hexvalue varchar (514) OUTPUT
AS
DECLARE @charvalue varchar (514)
DECLARE @i int
DECLARE @length int
DECLARE @hexstring char(16)
SELECT @charvalue = '0x'
SELECT @i = 1
SELECT @length = DATALENGTH (@binvalue)
SELECT @hexstring = '0123456789ABCDEF'
WHILE (@i <= @length)
BEGIN
  DECLARE @tempint int
  DECLARE @firstint int
  DECLARE @secondint int
  SELECT @tempint = CONVERT(int, SUBSTRING(@binvalue,@i,1))
  SELECT @firstint = FLOOR(@tempint/16)
  SELECT @secondint = @tempint - (@firstint*16)
  SELECT @charvalue = @charvalue +
    SUBSTRING(@hexstring, @firstint+1, 1) +
    SUBSTRING(@hexstring, @secondint+1, 1)
  SELECT @i = @i + 1
END

SELECT @hexvalue = @charvalue
GO

IF OBJECT_ID ('sp_help_revlogin') IS NOT NULL
  DROP PROCEDURE sp_help_revlogin
GO
CREATE PROCEDURE sp_help_revlogin @login_name sysname = NULL AS
DECLARE @name sysname
DECLARE @type varchar (1)
DECLARE @hasaccess int
DECLARE @denylogin int
DECLARE @is_disabled int
DECLARE @PWD_varbinary  varbinary (256)
DECLARE @PWD_string  varchar (514)
DECLARE @SID_varbinary varbinary (85)
DECLARE @SID_string varchar (514)
DECLARE @tmpstr  varchar (1024)
DECLARE @is_policy_checked varchar (3)
DECLARE @is_expiration_checked varchar (3)

DECLARE @defaultdb sysname

IF (@login_name IS NULL)
  DECLARE login_curs CURSOR FOR

      SELECT p.sid, p.name, p.type, p.is_disabled, p.default_database_name, l.hasaccess, l.denylogin FROM
sys.server_principals p LEFT JOIN sys.syslogins l
      ON ( l.name = p.name ) WHERE p.type IN ( 'S', 'G', 'U' ) AND p.name <> 'sa'
ELSE
  DECLARE login_curs CURSOR FOR


      SELECT p.sid, p.name, p.type, p.is_disabled, p.default_database_name, l.hasaccess, l.denylogin FROM
sys.server_principals p LEFT JOIN sys.syslogins l
      ON ( l.name = p.name ) WHERE p.type IN ( 'S', 'G', 'U' ) AND p.name = @login_name
OPEN login_curs

FETCH NEXT FROM login_curs INTO @SID_varbinary, @name, @type, @is_disabled, @defaultdb, @hasaccess, @denylogin
IF (@@fetch_status = -1)
BEGIN
  PRINT 'No login(s) found.'
  CLOSE login_curs
  DEALLOCATE login_curs
  RETURN -1
END
SET @tmpstr = '/* sp_help_revlogin script '
PRINT @tmpstr
SET @tmpstr = '** Generated ' + CONVERT (varchar, GETDATE()) + ' on ' + @@SERVERNAME + ' */'
PRINT @tmpstr
PRINT ''
WHILE (@@fetch_status <> -1)
BEGIN
  IF (@@fetch_status <> -2)
  BEGIN
    PRINT ''
    SET @tmpstr = '-- Login: ' + @name
    PRINT @tmpstr
    IF (@type IN ( 'G', 'U'))
    BEGIN -- NT authenticated account/group

      SET @tmpstr = 'CREATE LOGIN ' + QUOTENAME( @name ) + ' FROM WINDOWS WITH DEFAULT_DATABASE = [' + @defaultdb + ']'
    END
    ELSE BEGIN -- SQL Server authentication
        -- obtain password and sid
            SET @PWD_varbinary = CAST( LOGINPROPERTY( @name, 'PasswordHash' ) AS varbinary (256) )
        EXEC sp_hexadecimal @PWD_varbinary, @PWD_string OUT
        EXEC sp_hexadecimal @SID_varbinary,@SID_string OUT

        -- obtain password policy state
        SELECT @is_policy_checked = CASE is_policy_checked WHEN 1 THEN 'ON' WHEN 0 THEN 'OFF' ELSE NULL END FROM sys.sql_logins WHERE name = @name
        SELECT @is_expiration_checked = CASE is_expiration_checked WHEN 1 THEN 'ON' WHEN 0 THEN 'OFF' ELSE NULL END FROM sys.sql_logins WHERE name = @name

            SET @tmpstr = 'CREATE LOGIN ' + QUOTENAME( @name ) + ' WITH PASSWORD = ' + @PWD_string + ' HASHED, SID = ' + @SID_string + ', DEFAULT_DATABASE = [' + @defaultdb + ']'

        IF ( @is_policy_checked IS NOT NULL )
        BEGIN
          SET @tmpstr = @tmpstr + ', CHECK_POLICY = ' + @is_policy_checked
        END
        IF ( @is_expiration_checked IS NOT NULL )
        BEGIN
          SET @tmpstr = @tmpstr + ', CHECK_EXPIRATION = ' + @is_expiration_checked
        END
    END
    IF (@denylogin = 1)
    BEGIN -- login is denied access
      SET @tmpstr = @tmpstr + '; DENY CONNECT SQL TO ' + QUOTENAME( @name )
    END
    ELSE IF (@hasaccess = 0)
    BEGIN -- login exists but does not have access
      SET @tmpstr = @tmpstr + '; REVOKE CONNECT SQL TO ' + QUOTENAME( @name )
    END
    IF (@is_disabled = 1)
    BEGIN -- login is disabled
      SET @tmpstr = @tmpstr + '; ALTER LOGIN ' + QUOTENAME( @name ) + ' DISABLE'
    END
    PRINT @tmpstr
  END

  FETCH NEXT FROM login_curs INTO @SID_varbinary, @name, @type, @is_disabled, @defaultdb, @hasaccess, @denylogin
   END
CLOSE login_curs
DEALLOCATE login_curs
RETURN 0
GO

EXEC sp_help_revlogin

Kindly see below execute sp_help_revlogin script on Source Server and copy it




Paste it on Destination Server and execute it as see below




Now see it on destination server master and user database as see below



Now you can see orphan report shows as null as all are fixed


Now we can able to logged in both login without any error






Now we can test whether update on table and permissions on Primary are reflecting on Secondary or not






Now we add TestNorthwindW Read/Write permissions as see below



 Now we need to Run Backup job @ Primary Server as see below




Now we destination Server shows table and stored procedure old record and permissions




 Now we see before run Copy & Restore job table is showing old data and now we are going to copy job as see below



 Now we are going to Run Restore job as see below



Now we updated records reflected on Destination as see below


Also see destination server shows permissions reflected as see below






Reverse Log shipping or Manual Fail Over with Log shipping:

Recent SQL Server releases have had a major focus on high availability. Early previews of the next release of SQL Server, code-named Denali (SQL Server 2012), show that this trend will continue. Somewhere in the midst of the new availability technologies and feature sets, log shipping seems to have fallen by the wayside. Although log shipping received a much-needed face lift with SQL Server 2005, there were only minor enhancements in SQL Server 2008.
Although log shipping isn’t as widely used as it once was, it’s still a vital tool that has many applications, such as using warm standbys for disaster recovery, migrating large databases, and providing read-only access to data. Log shipping isn’t difficult to understand or use. There are three techniques that can save you a lot of time and make working with log shipping painless: reversing log shipping, switching between log shipping and database mirroring, and converting log shipping to t r a n s a c t i o n a l replication.

Reversing Log Shipping

Reversing log shipping is an often overlooked practice. When D B A s need to fail over to a secondary log shipping server, they tend to worry about getting log shipping back up later. This is especially true in the case of very large databases. If you're using log shipping as your primary disaster recovery solution and you need to fail over to the secondary log shipping server, you should get log shipping running as quickly as possible. With no disaster recovery fail over in place, you might be running exposed.
Reversing log shipping is simple. It doesn’t require re initializing the database with a full backup if performed carefully. However, it’s crucial that you remember the following:
  • You need to preserve the log sequence number (L S N) chain.
  • You need to perform the final log backup using the NO RECOVERY option. Backing up the log with this option puts the database in a state that allows log backups to be restored and ensures that the database’s L S N chain doesn’t deviate.
  • The primary log shipping server must still be accessible to use this technique.
To fail over to a secondary log shipping server, follow this 10-step process:
  1. Disable all backup jobs that might back up the database on both log shipping partners.
  2. Disable the log shipping jobs.
  3. Run each log shipping job in order (i.e., backup, copy, and restore).
  4. Drop log shipping.
  5. Manually back up the log of the primary database using the NO RECOVERY option. Use the command
    BACKUP LOG [Database Name]   TO DISK = 'Backup File Path name'   WITH NO RECOVERY;
    where Database Name is the name of the database whose log you want to back up and Backup File Path name is the backup file’s path name (e.g., Z:\SQL Server Backups\T L o g.b c k).
  6. Restore the log backup on the secondary database using the RECOVERY option, and bring the secondary database online. The primary and secondary databases have now switched positions.
  7. Back up the log of the new primary database (optional).
  8. Restore the log on the new secondary database using the NO RECOVERY option (optional).
  9. Reconfigure log shipping.
  10. Re-enable any backup jobs that were disabled.
Note that step 7 and step 8 are listed as optional because they’re not required for establishing log shipping. However, I recommend performing these steps to ensure that the log shipping configuration will proceed without any problems.
With a few minor adjustments, this 10-step process works with multiple secondary log shipping databases. You perform the same basic steps, keeping in mind that the other secondary databases will still be secondary databases after the fail over. After you back up the log on the new primary database, you should use the NO RECOVERY option to restore that backup on all the planned secondary databases. You can then add them as secondary databases to the new primary database.
More Ref:
h t t p://s q l mag.com/database-high-availability/3-log-shipping-techniques
h t t p://w w w .s q l shack.com/s q l-server-log-shipping/

Remove log shipping in SQL Server

Here we can see SQL 2008 server to SQL 2012 Just right click on Source server SQL 2008 database as see below







After click ... button it will open as see below then just click



 It will open secondary database setting as see below



 Now just click remove button as see below


 after remove secondary jobs now  remove tick from enable this as option as see below



After submit button it will remove jobs on primary and secondary and remove log shipping configurations as see below



 Here you can job removed completely

 After remove log shipping configurations see below it is complete remove jobs and database not configured see below


Thanks for Reading
